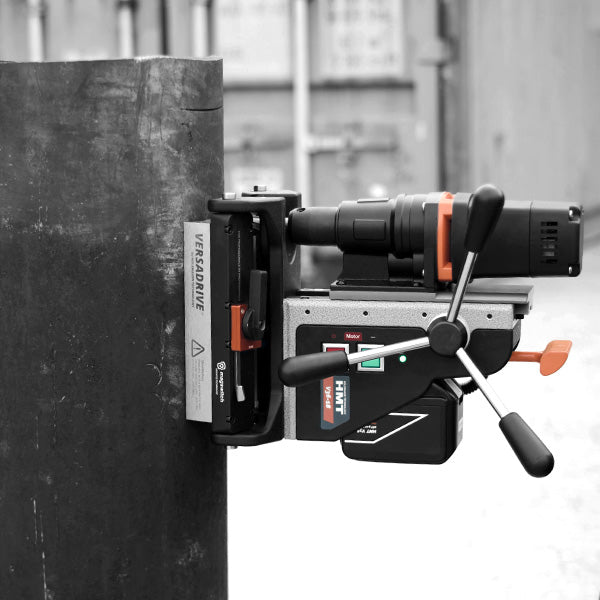

Drill anywhere. Even on pipe.

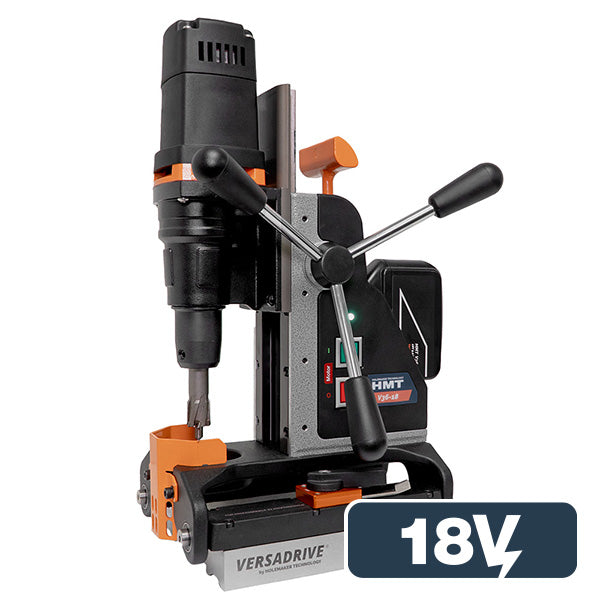

The V36 Pipe delivers cordless hole making with secure clamping on curved surfaces — ideal for pipework in any location.
As the world’s first cordless pipe mag drill, the V36 Pipe is optimised for steel pipe and tube applications where cables are a hazard. It uses a dual-swivel magnet base for safety and control, and integrates with Versadrive tooling for versatile performance.
Key benefits include:
- Designed for pipes from 80mm OD and above
- Cordless operation ideal for access-limited job sites
- Dual pivoting magnet holds safely on curved surfaces
- Swivel base allows easy positioning and tool changes
- Weldon arbor and Versadrive compatible as standard
- Lightweight and portable with full STAKIT integration
- Compatible with Makita LXT 18v Batteries
Kits supplied with case, 2 x 18v batteries, compact charger, Versadrive Rapid-Lock adapter, restraint strap & heavy duty metal guard
Technical Specification
| MAX TCT CUTTER CAPACITY | 36mm |
| MAX HSS CUTTER CAPACITY | 32mm |
| MAX CUTTER LENGTH | 110mm |
| TWIST DRILL CAPACITY | 1 - 13mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 10 - 25mm |
| LENGTH | 204mm |
| WIDTH (Inc Handles) | 220mm |
| HEIGHT (Min-Max) | 315 - 455mm |
| STROKE | 140mm |
| WEIGHT (inc. 4Ah Battery) | 11.35 kg |
| MAGNET | 187 x 165 x 83mm |
| MAGNETIC ADHESION | 532 kgs |
| MOTOR POWER | 1000w |
| TOTAL POWER | 1000w |
| SPEED RPM (No Load) | 530 min-1 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral ¾" Weldon |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 1 Year |
| Battery Compatibility | HMT 18v Battery & Makita LXT 18v |
