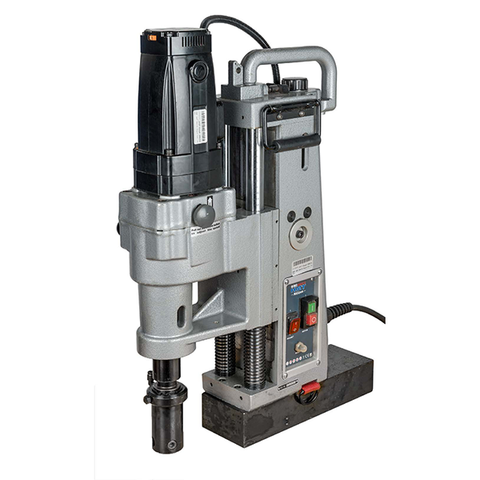

HMT MAX200 Magnet Drill - 200mm Extra Large Broaching Capacity - MT4 (803095)
Videos
HUGE POWER AND MAGNET HOLD TO MAKE LIGHT WORK OF HEAVY ENGINEERING TASKS
The Ultimate Magnetic Drill for the largest possible broaching, drilling and Countersinking tasks. Fantastic power and magnetic adhesion make this Mag Drill a world beater for heavy duty engineering tasks.
- Designed for heavy portable engineering works
- Huge Power 3800 Watt Motor
- High precision Twin column slideway system
- Up to 200mm Broach Capacity
Each machine comes in a metal, heavy duty, wheeled case with MT4 broaching arbor, hex keys, safety strap and internal coolant system.
Technical Specification
| CUTTER SIZE RANGE | 12-200mm |
| MAX CUTTER LENGTH | 200mm |
| TWIST DRILL RANGE | 12-50mm |
| TAPPING RANGE | N/A |
| COUNTERSINKING | 31-80mm |
| REAMING | 39mm |
| LENGTH | 480mm |
| WIDTH INC HANDLES | 260mm |
| HEIGHT | 660-840mm |
| STROKE | 280mm |
| WEIGHT | 53kg |
| MAGNET (L x W) | 330x110mm |
| MAGNETIC FORCE | 3900kg |
| MOTOR POWER | 3800W |
| SPEED RPM (No Load) | 1)70-150; 2)170-410 RPM |
| SPINDLE | MT4 |
| ARBOR | Weldon XL 32mm 11/4€ |
| TAKES CHUCK | Yes |
| WARRANTY | 1 Year |
