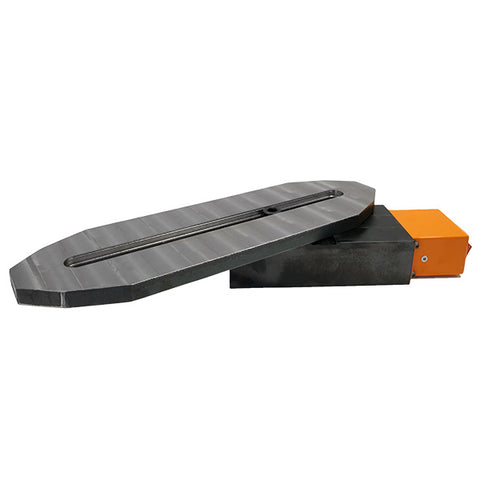

HMT OverReach System (8610)

£538.40

The HMT OverReach system is a unique Magnetic base, secondary fixturing system designed for use with Magnetic Drills. Overreach provides the capability to reach over, around, and beyond obstructions such as plates or rivet heads which would otherwise prevent convenient access with a conventional Magnetic Drill. The powerful electromagnet can...
Read More Below





Videos

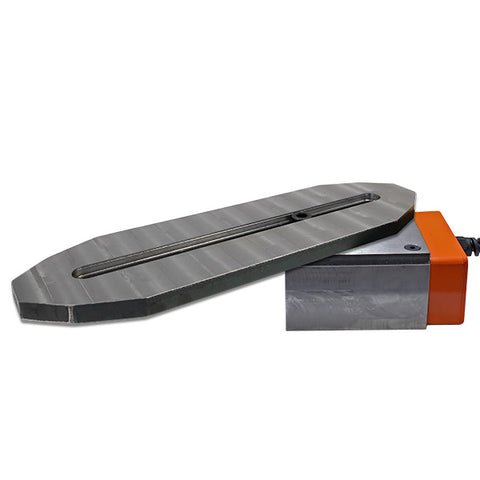

The HMT OverReach system is a unique Magnetic base, secondary fixturing system designed for use with Magnetic Drills.

Overreach provides the capability to reach over, around, and beyond obstructions such as plates or rivet heads which would otherwise prevent convenient access with a conventional Magnetic Drill.

The powerful electromagnet can be positioned further away from the hole & a magnet drill can be placed on the projecting steel plate to give more positioning options.

With the adjustable swivel arm fitted, the magnetic base can be mounted up to 300mm from where the magnet drill is required, giving greater flexibility & overcoming otherwise impossible drilling challenges.

Supplied in a STAKIT Base 200 case.

N.B. Minimum base material required for OverReach system = 10mm thick, clean, flat, paint & rust free
To be used in accordance with operating instructions contained within Manual

N.B. Minimum cutter length needed for use with the OverReach system = 110mm cutting depth



Product Benefits

  • OverReach 50 Dual Coil version provides enhanced magnetic adhesion and compatibility with 230 Volt input supply.
  • High Strength Magnetic Base
  • Industrial Grade swivel, mounting plate
  • Swivels through 360 degrees for ultimate positioning flexibility

OverReach 35

MAX CUTTER CAPACITY 35mm TCT
SWIVEL PLATE THICKNESS 20mm
PLATE AREA
400 X 140mm
WEIGHT 12.6kg
TRAVEL 300mm
MAGNET POWER 1100kgs
MAGNET DIMENSIONS
115 x 115mm
MAX WEIGHT SUPPORTED
12kg

OverReach 50

MAX CUTTER CAPACITY 50mm TCT
SWIVEL PLATE THICKNESS 20mm
PLATE AREA
473 X 140mm
WEIGHT 17.85kg
TRAVEL 300mm
MAGNET POWER 2200kgs
MAGNET DIMENSIONS
220 x 115mm
MAX WEIGHT SUPPORTED
18kg
