MARKET LEADING PERFORMANCE

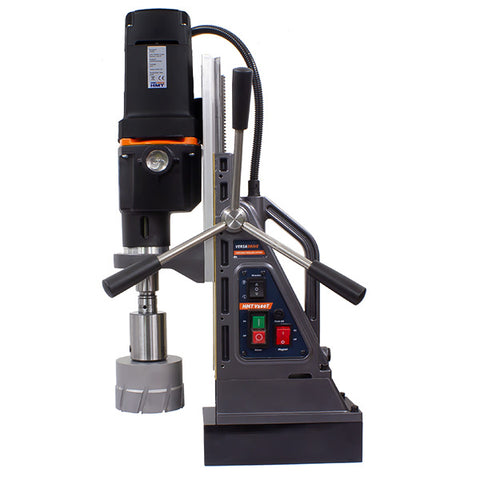

The HMT V100T offers high performance, low maintenance industrial drilling with an all day broaching capacity up to 100mm diameter.
Its powerful forward /reverse, variable speed, geared Eibenstock motor will tap holes up to M30 and can be used with the VersaDrive® blind hole tapping system up to M30.
The V100T is also fully rated for reaming and countersinking.
Supplied with a coolant fed arbor.
Technical Specification
| CUTTER SIZE RANGE | 12 - 100mm TCT |
| MAX CUTTER CAPACITY | 100mm TCT |
| TWIST DRILL CAPACITY | 32mm |
| MAX TAP CAPACITY | M30 |
| MAX COUNTERSINKING | 55mm |
| LENGTH | 345mm |
| WIDTH (Inc Handles) | 240mm |
| HEIGHT (Min-Max) | 450 - 730mm |
| STROKE | 280mm |
| WEIGHT | 24.5 kg |
| MAGNET (L X W) | 220 x 115mm |
| MAGNETIC ADHESION | 2200 kgs |
| MOTOR POWER | 1800w |
| TOTAL POWER | 1900w |
| SPEED RPM (No Load) | 60 - 140 / 200 - 470 |
| SPINDLE | MT3 |
| ARBOR | 19,05 mm (¾€) Weldon |
| TAKES CHUCK | Yes |
| COOLANT SYSTEM | Gravity Oil Fed |
| WARRANTY | 2 Years (When registered) |
