MARKET LEADING PERFORMANCE

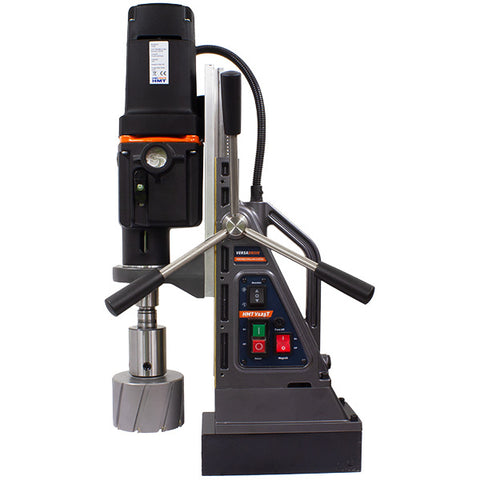

The HMT V125T offers heavy duty, portable drilling up to 125mm diameter.
An all-day broaching capacity combines with powerful tapping capability up to M32 for both through & blind holes thanks to a powerful forward/reverse, variable speed, multi-geared Eibenstock motor.
Advanced British electromagnets also provide enhanced magnet hold for exceptional safety and stability.
Supplied with a coolant fed arbor.
Technical Specification
| CUTTER SIZE RANGE | 12 - 125mm TCT |
| MAX CUTTER CAPACITY | 125mm TCT |
| TWIST DRILL CAPACITY | 32mm |
| MAX TAP CAPACITY | M32 |
| MAX COUNTERSINKING | 65mm |
| LENGTH | 345mm |
| WIDTH (Inc Handles) | 240mm |
| HEIGHT (Min-Max) | 470 - 750mm |
| STROKE | 280mm |
| WEIGHT | 25 kg |
| MAGNET (L X W) | 220 x 115mm |
| MAGNETIC ADHESION | 2200 kgs |
| MOTOR POWER | 1800w |
| TOTAL POWER | 1900w |
| SPEED RPM (No Load) | 60-140 / 100-220 / |
| 140-310 / 210-490 | |
| SPINDLE | MT3 |
| ARBOR | 19,05 mm (¾") Weldon |
| TAKES CHUCK | Yes |
| COOLANT SYSTEM | Gravity Oil Fed |
| WARRANTY | 2 Years (When registered) |
