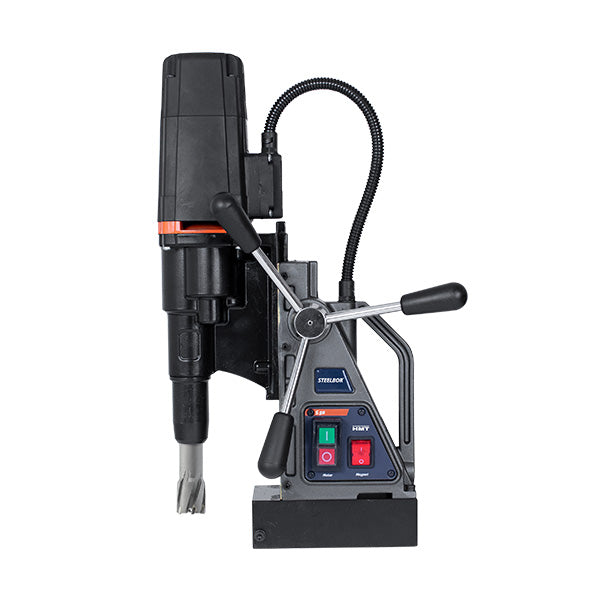

VersaDrive® S50 Magnet Drill (850250)
Videos
Market leading power-to-weight ratio.
The S50 combines compact power with 2-speed control — ideal for heavy drilling and versatile site work up to 55mm.
Positioned between ultra-compact and high torque models, the S50 delivers reliable, allday
performance for broaching, reaming and countersinking. With a 160mm stroke, it accepts
long cutters and integrates seamlessly with both Versadrive & Weldon tooling systems.
- 2-speed motor for cutting control and material flexibility
- Drills up to 55mm diameter with TCT cutter performance
- 160mm stroke supports long broach cutters & reamers
- Protective case and accessories supplied as standard
- Versadrive adapter available for modular system use
- Ideal for structural and fabrication shop environments
*Standard kits supplied in protective site case.
**PRO kits supplied in STAKIT Base 200 case with VersaDrive Rapid-Lock adapter
Technical Specification
| MAX TCT CUTTER CAPACITY | 55mm |
| MAX HSS CUTTER CAPACITY | 50mm |
| MAX CUTTER LENGTH | 150mm |
| TWIST DRILL CAPACITY | 18mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 32mm |
| LENGTH | 270mm |
| WIDTH (Inc Handles) | 165mm |
| HEIGHT (Min-Max) | 400 - 560mm |
| STROKE | 160mm |
| WEIGHT | 12.7 kg |
| MAGNET | 167 x 80 x 50mm |
| MAGNETIC ADHESION | 1250 kgs |
| MOTOR POWER | 1200w |
| SPEED RPM (No Load) | 400 / 720 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral 19,05 mm (¾") Weldon |
| TAKES CHUCK | Yes |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 2 Years (when registered) |
